面向Kinetis® K20 USB MCU的Freedom开发平台

FRDM-K20D50M

滚动图片以放大

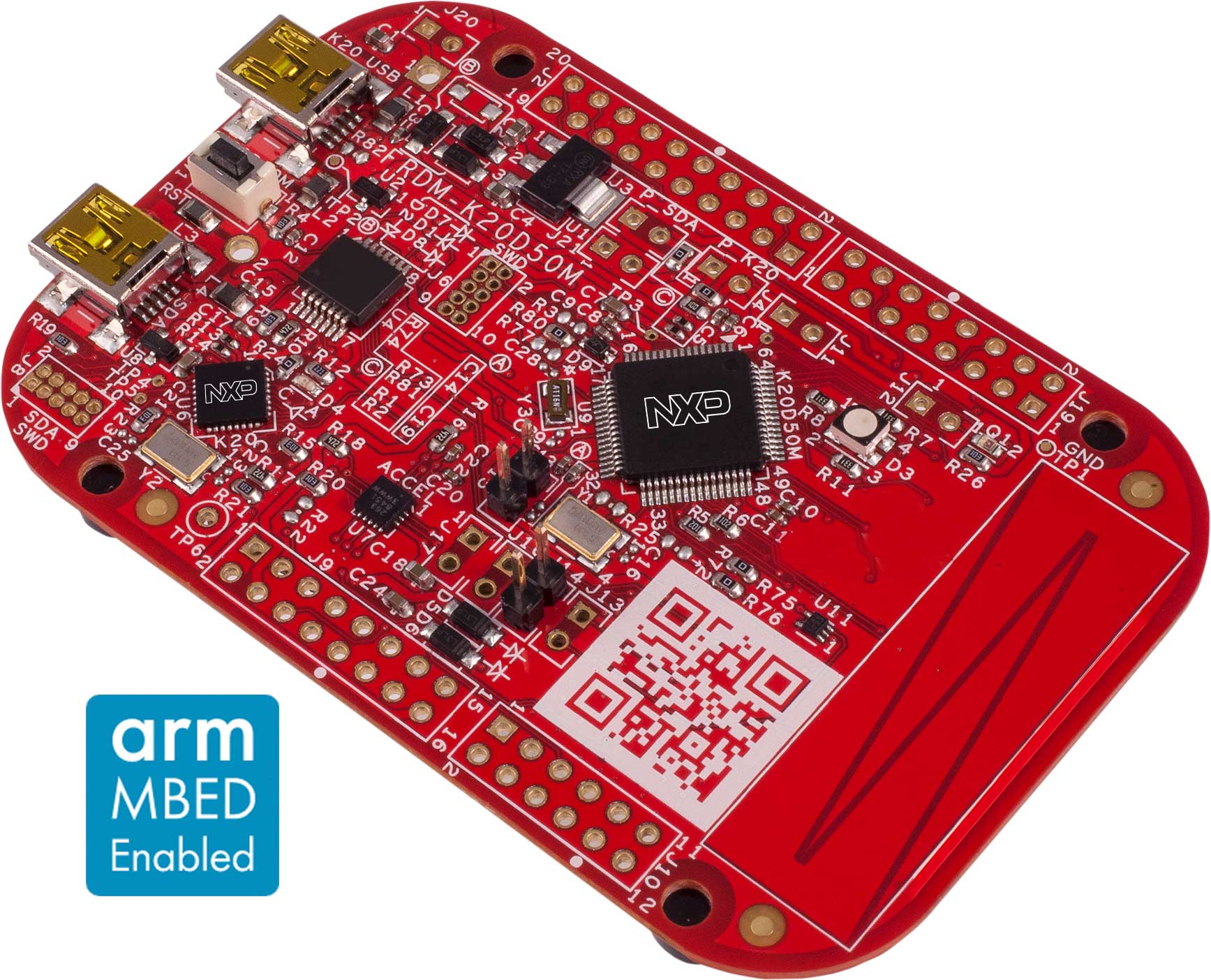

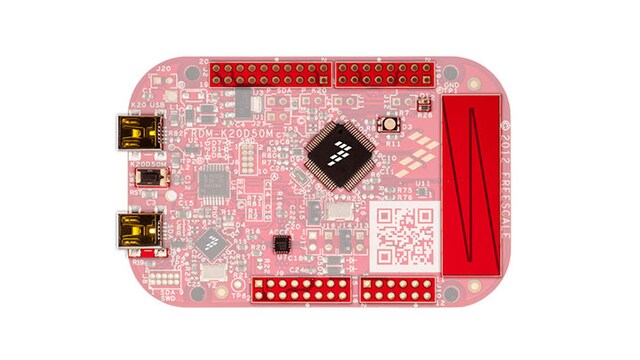

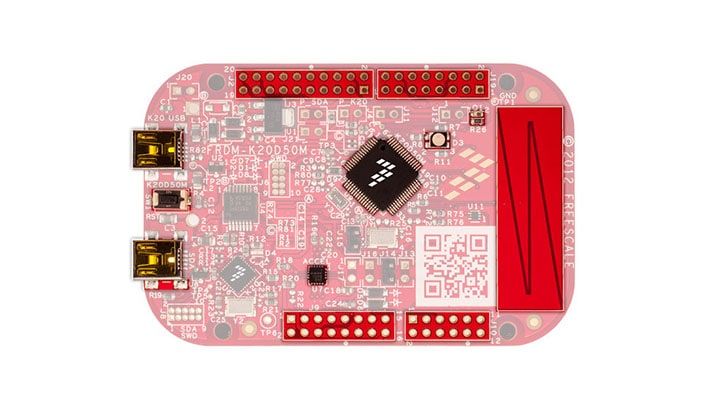

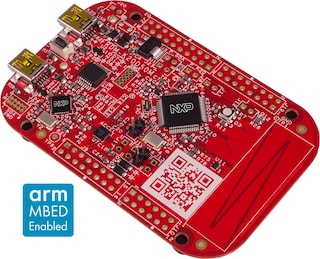

The FRDM-K20D50M is an ultra-low-cost development platform enabled by the K20 USB MCU family built on the Arm® Cortex®-M4 processor.

该硬件配有OpenSDA，可轻松访问MCU I/O，配备电池，低功率运行，采用可搭配扩展板的标准规格，并提供用于闪存编程和运行控制的内置调试接口。

  • 面向低压H桥产品的Processor Expert®组件能够帮助您快速完成嵌入式应用的开发。

    • 注：恩智浦已停止生产本产品，但恩智浦分销合作伙伴可能还有剩余的库存仍在销售。如需类似的开发工具，请考虑基于Kinetis® K22 MCU的FRDM-K22F或基于Kinetis K64 MCU的FRDM-K64F。

    产品详情

    特征

    微控制器

      MK20DX128VLH5 MCU

    • 50 MHz
    • 128 KB闪存
    • 16 KB RAM
    • 32 KB FlexNVM
    • 低功耗
    • 64 LQFP package

    数据连接

    • 两用USB接口，带Mini-B USB接头
    • Easy access to MCU I/O via Arduino® Rev3 compatible I/O connectors

    电源管理

      灵活的供电选项

      • USB
      • 钮扣电池
      • external source
    • 已配备电池，电源测量接入点

    调试

      可编程OpenSDA调试接口，带多种可用的应用，包括：

    • 大容量存储设备闪存编程接口
    • P&E调试接口具有运行控制调试功能并兼容IDE工具
    • CMSIS-DAP interface: new Arm ® standard for embedded debug interface
    • 数据记录应用

    传感器

    • 电容触摸滑块
    • 环境光传感器
    • MMA8451Q加速度传感器

    支持

    • 兼容Arduino® Rev3便拥有了大量的扩展电路板可以选择

    用户组件

    • 3色LED
