AW-AM457-D Evaluation Board

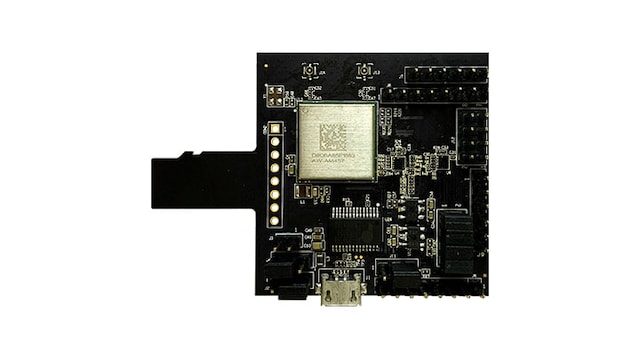

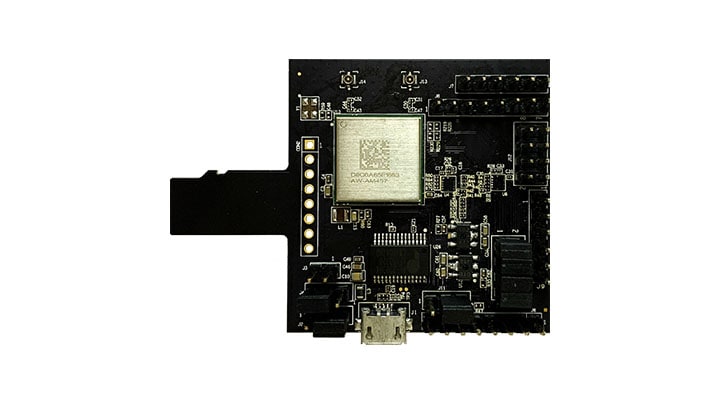

AW-AM457-D-uSD

滚动图片以放大

AW-AM457-D-uSD is the evaluation board of AW-AM457-D, which support 802.11a/b/g/n 1x1 2.4 GHz/5 GHz with 15x15 LGA form-factor. It has one antenna to support Wi-Fi 1 (Transmit) x 1 (Receive) communications. Another antenna to support Bluetooth communications. The host interface supports SDIO for Wi-Fi® and UART for Bluetooth®.

支持的器件

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • IW416: 2.4/5GHz双频1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2解决方案

Features

Wi-Fi

  • Wi-Fi 4 802.11a/b/g/n 1x1

Bluetooth

  • Bluetooth 5.1

Interface

  • Wi-Fi for SDIO and BT for UART

Antenna Pins

  • ANT1 for Wi-Fi Tx/Rx
  • ANT2 for Bluetooth Tx/Rx

Buy Options

Click to expand

  • AW-AM457-D-uSD

  • Azurewave AW-AM457-D-uSD evaluation board enables evaluation and development of the AW-AM457-D 802.11a/b/g/n 2.4GHz/5GHz 15x15 LGA module based on NXP's IW416 solution.

  • Kit Contains:

    • AW-AM457-D-uSD (with AW-AM457-D module on board)
    • 75 mm, 20 contacts, 0.5 mm pitch FFC Cable
    • PIFA Antenna
