关于本期视频

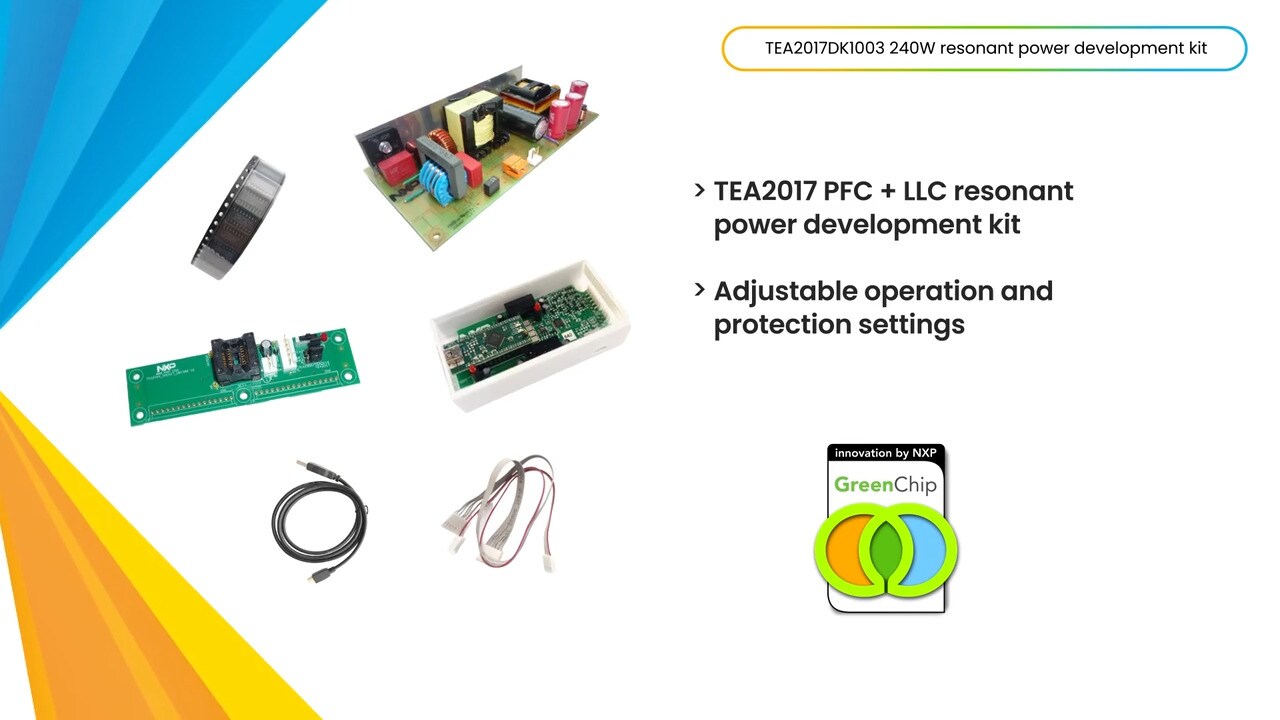

NXP’s TEA2017 power supply development kit is a 240 watt evaluation board plus tools that showcase how to simplify and optimize AC to DC power supply designs for applications, such as computing, gaming, TVs and industrial equipment. The TEA2017 combines an LLC and a PFC controller in a small SO16 package. It’s based on a digitally configurable high-speed state machine architecture that enables flexibility, reduces component count and simplifies design while delivering excellent efficiency at all power levels. The TEA2017 sample used in the kit is a special development version that can have parameters changed on the fly using the Ringo GUI, changing the operating frequencies, soft start and soft stop functions, operating mode transition points and many other parameters for rapid testing and design optimization.
Explore more about the TEA2017 PFC + LLC Resonant Power Supply Dev Kit
Key Highlights
- 240 watt evaluation board plus tools
- Combines an LLC and a PFC controller in a small SO16 package
- Simplified high-efficiency power supply design and reduced component count
- Easy to optimize via digitally configurable parameters
- Special TEA2017 development ICs for on-the-fly parameter changes
