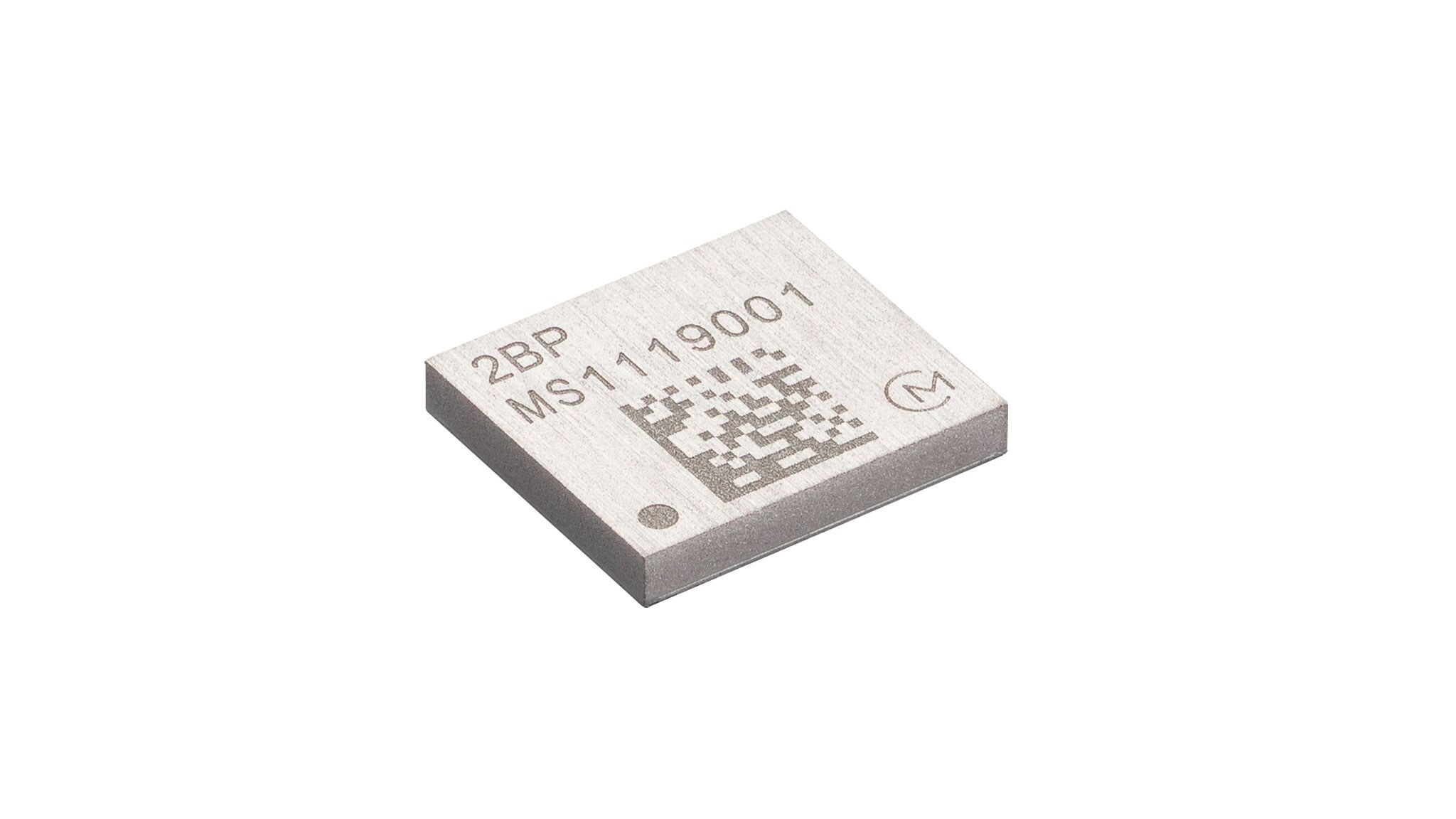

Trimension™ SR150 UWB Module: Murata Type2BP

MURATA-MODULE-SR150-UWB-TYPE-2BP

滚动图片以放大

Built upon NXP's SR150 Ultra-Wideband (UWB) transceiver IC, this Murata module provides higher precision capabilities for smart access control devises and internal asset tracking. Compliant with IEEE802.15.4z HRP PHY, this UWB module is compatible with 2-way ranging, 2D and 3D AoA (Angle of Arrival). With multiple Trimension SR150 devices placed in the same room or indoor area, UWB anchors can be created for indoor positioning.

支持的器件

无线连接

Trimension® 超宽带

  • SR150: Trimension™ SR150：面向物联网设备的安全超宽带解决方案

Features

Size

  • 6.6 x 5.8 x 1.2 mm (Tmax)

On-board component

  • Reference clock (38.4 Mhz)
  • Sleep clock (32 Khz)
  • RF front end for 3 antenna configuration

Host Interface

  • SPI

Other Interfaces

  • I2C(SE), UART(Coex), SWD(Debug) and GPIOs

Secure element interface (yes/no)

  • Yes

Antenna

  • External reference antenna
